AS400 Card - V series
Elevate your system’s performance with the cutting-edge AS400 Card - V Series! Designed for high efficiency and reliability, the V Series is your ultimate solution for optimizing workload management and enhancing system capabilities.
Product Features:

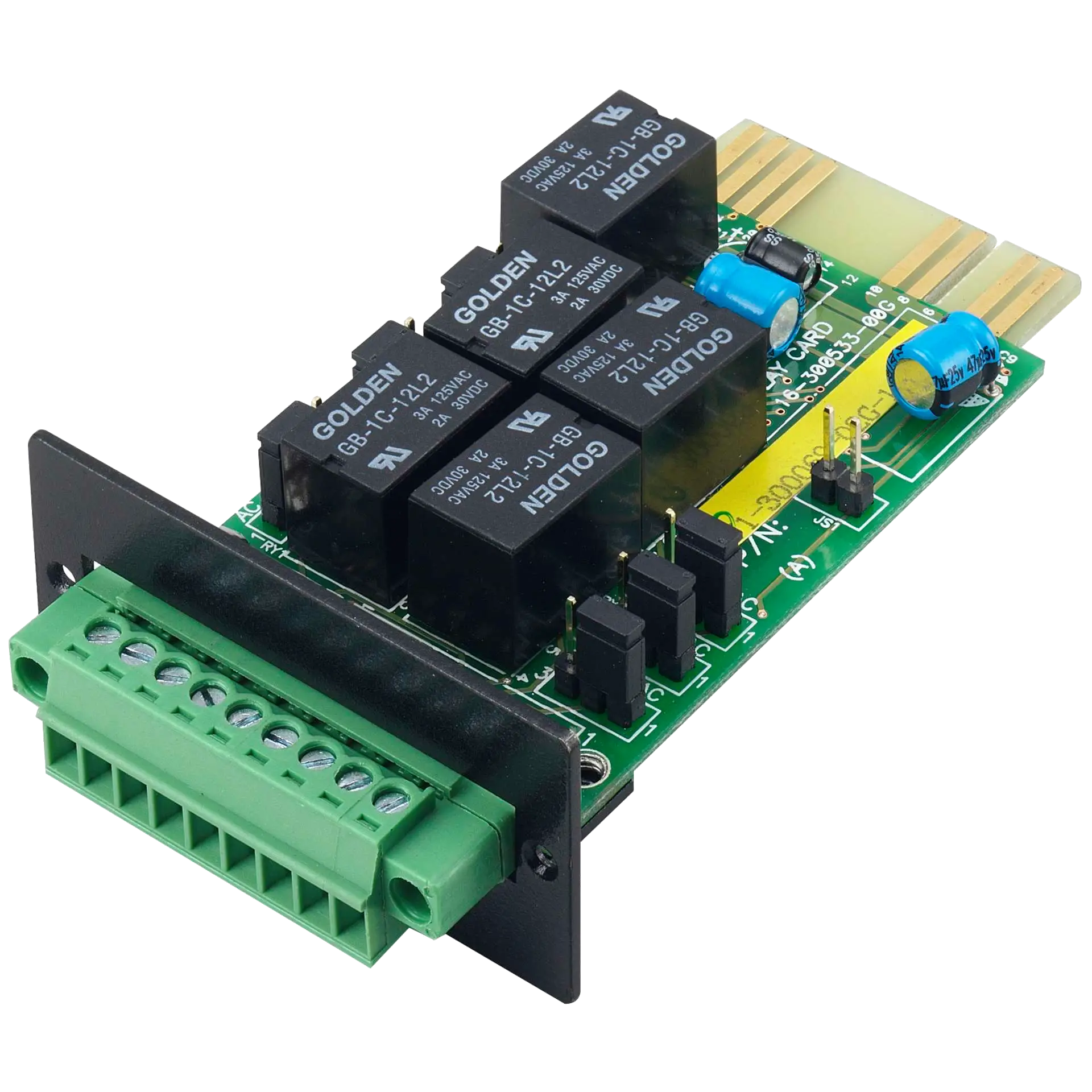

The AS400 communication card provides contact closures for remote monitoring your UPS. To meet different application requirement, the AS400 card is capable of selection the status of the dry-contact signal (active close or active open) by setting jumper. This suitable applications are listed below:
- IBM Server, Personal PC & Workstations equipamentes
- Auto-controlled industrial equipament & communication applications
List of Application:
- For all ORVALDI devices equipped with an IntelligentSlot
"HIGH QUALITY" OPTION:
ORVALDI will, in accordance with the terms and conditions of insurance, replace, repair or compensate ORVALDI products and/or connected devices in the event of damage as a result of an electrical surge. The maximum total amount compensated is 5000Euro (five thousand Euros).
Why Choose the AS400 Card - V Series?
The AS400 II relay card is an ideal solution for automation, enabling remote monitoring and control of UPS systems. Equipped with status notifications, fault alarms, and network management protocol integration, it excels in industrial and automated environments. The card allows for easy customization of UPS operations to meet specific automation needs, ensuring safety and continuity of operation.

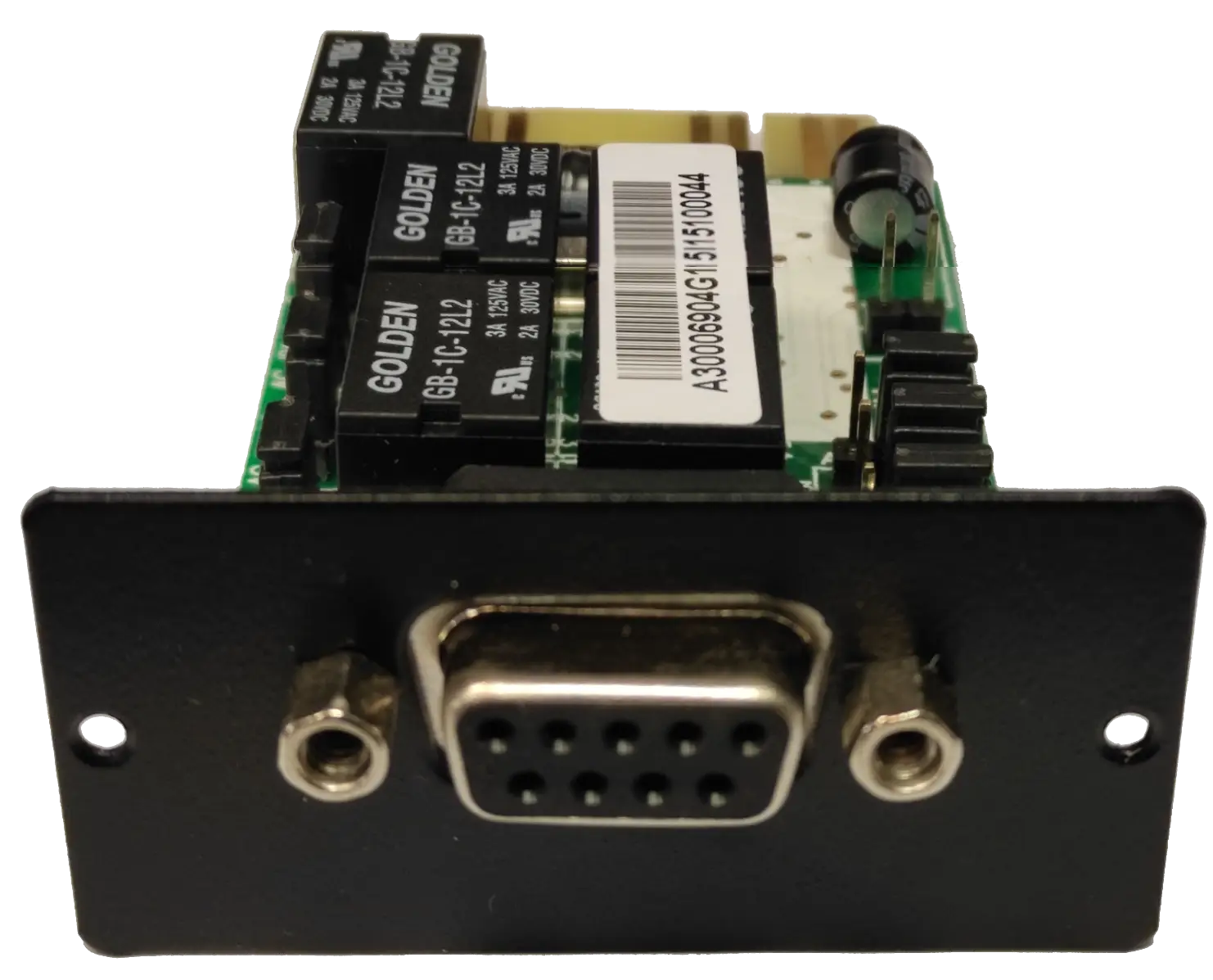

9-PIN |
DB9 |
 |
 |
Pin Assignment
| Pin Assignment | Function | I/O |
|---|---|---|
| Pin 1 | UPS Failure | O/P |
| Pin 2 | UPS Audible Alarm | O/P |
| Pin 3 | GND (Common for Pin 4) | Power Ground |
| Pin 4 | Remote Shutdown | I/P |
| Pin 5 | Common for relays | Power Supply |
| Pin 6 | Bypass Active | O/P |
| Pin 7 | Low Battery | O/P |
| Pin 8 | UPS On | O/P |
| Pin 9 | Utility Failure | O/P |
Function Description
| AC Status | AO Status | Reason |
|---|---|---|
| Pin 1 & Pin 5 connected | Pin 1 & Pin 5 disconnected | UPS internal failure |
| Pin 2 & Pin 5 connected | Pin 2 & Pin 5 disconnected | UPS failure, utility failure, low battery, bypass active |
| Pin 6 & Pin 5 connected | Pin 6 & Pin 5 disconnected | Bypass active |
| Pin 7 & Pin 5 connected | Pin 7 & Pin 5 disconnected | Battery voltage is low |
| Pin 8 & Pin 5 connected | Pin 8 & Pin 5 disconnected | UPS is in inverter mode |
| Pin 9 & Pin 5 connected | Pin 9 & Pin 5 disconnected | Utility failure |
